Small Scale Automatic Live Red Shrimp Fish Aquaculture Tilapia Fry Grading Sorting Machine Fish and Shrimp Sorting Machine

Name: Small Scale Automatic Live Red Shrimp Fish Aquaculture Tilapia Fry Grading Sorting Machine Fish and Shrimp Sorting Machine
Brand: Welly
Price: 7 USD

Buy cheap Small Scale Automatic Live Red Shrimp Fish Aquaculture Tilapia Fry Grading Sorting Machine Fish and Shrimp Sorting Machine product

core components : Motor

Machine material : stainless steel

dimension(l*w*h) : 1250x8800x1250mm(49.21x346.46x49.21in)

Energy : electric

warranty : 1 Year

MOQ : 1

Brand Name : Welly

voltage : 220V 380V customized, customizable

power(w) : 1.3kw(1.74hp)

Type : weighing scales

Function : Check Weighing

weight : 457

production capacity : 180pcs/min

Application : food vegetable fruit seafood and others

type : grading

automatic grade : Automatic

Captity : 120pcs/min

Place of Origin : Henan, China

Price : $7,740-11,050

machinery test report : Not Available

Product name : weight sorting machine

After Warranty Service : Online support

Keyword : fish grading machine, weight sizing, automatic fish sorting machine

video outgoing-inspection : Not Available

Contact Now

♦ Small Scale Automatic Live Red Shrimp Fish Aquaculture Tilapia Fry Grading Sorting Machine Fish And Shrimp Sorting Machine

Product Description

I. Product introduction

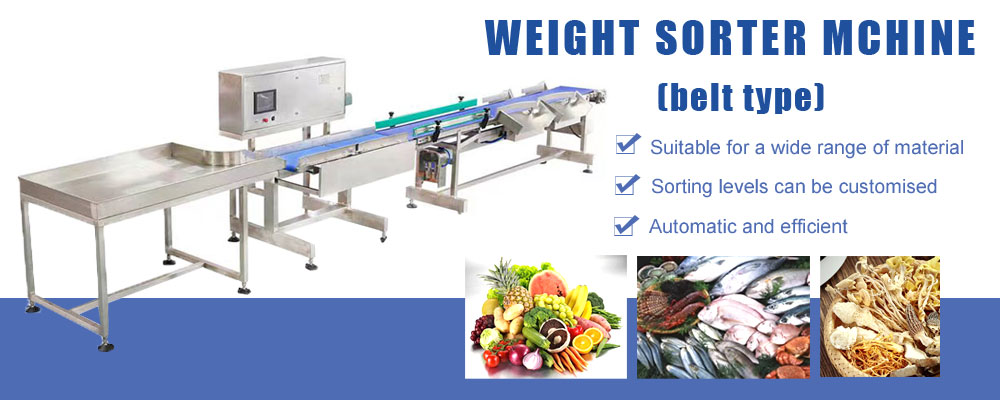

Belt weight sorting machine is mainly applied to the automatic weighing of product classification. Namely separate the weight grades according to the setting of the product specification. Each product is weighed separately and automatically reject to the specified weight grade or weight category. Efficiently replace the manual sorting, increase the product standardization and sorting speed. Reduce the error of manual operation, which is widely used in aquatic products, seafood, poultry, medicinal materials, hardware, plastic products, chemical raw materials etc.

II. Features

1.Waterproof and moisture-proof structure design. Operate well in high humidity and harsh environment.
2.100 sets of product parameters seting and stored. And can be freely switched according to the using requirements.
3. High precision weighing module and stable control system.
4. Flapper rejector sorting: 3 million life testing.
5. Quantity of sorting grades: no limit, at present we have done 26 weight stations
6. Weighing data output:RS232/485, USB interface, wireless data transmission, local area network station

management platform, cloud platform.

Model	WYZF-400*150	WYZF-400*200	WYZF-600*200	WYZF-700*200	WYZF-700*300	WYZF-800*200
Weighing capacity	200g	500g	5000g	5000g	5000g	5000g
Weighing accuracy	±0.3g	±0.5g	±3g	±5g	±10g	±10g
Weighing speed	120pcs/min
Sorting grades	no limit (more than 2 grades)
Weighing belt size (mm)	L400*W150	L400*W200	L600*W200	L700*W200	L700*W300	L800*W200
Applicable product size(mm)	L200*W120	L200*W150	L400*W150	L500*W150	L500*W250	L600*W150
Weighing direction	Left to right or right to left depending on the customer's site.
Weighing sensor	Original Germany HBM
Operation display	8 inches touch screen
Belt conveyor	Food grade PU belt
Height of conveyor	Customized according to the usting needs
Power supply	Single phase AC220-240V,50/60HZ(Customized)
Construction	SUS304,polishina Waterproof and moisture-proof structure

Small Scale Automatic Live Red Shrimp Fish Aquaculture Tilapia Fry Grading Sorting Machine Fish and Shrimp Sorting Machine Images
